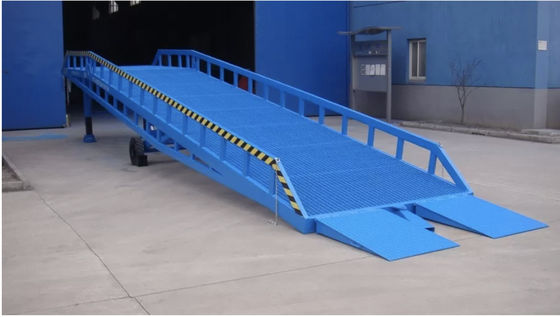

1. Basic Product Information
Type: Mobile Hydraulic Dock Ramp
Representative Model: DCQY8-0.5
Loading Capacity: 8,000 kg (Note: The full series includes models with different load capacities, see the parameter table for details)
Adjustable Height: 1.2m - 1.7m
Quality Certificate: CE Certification
2. Product Introduction

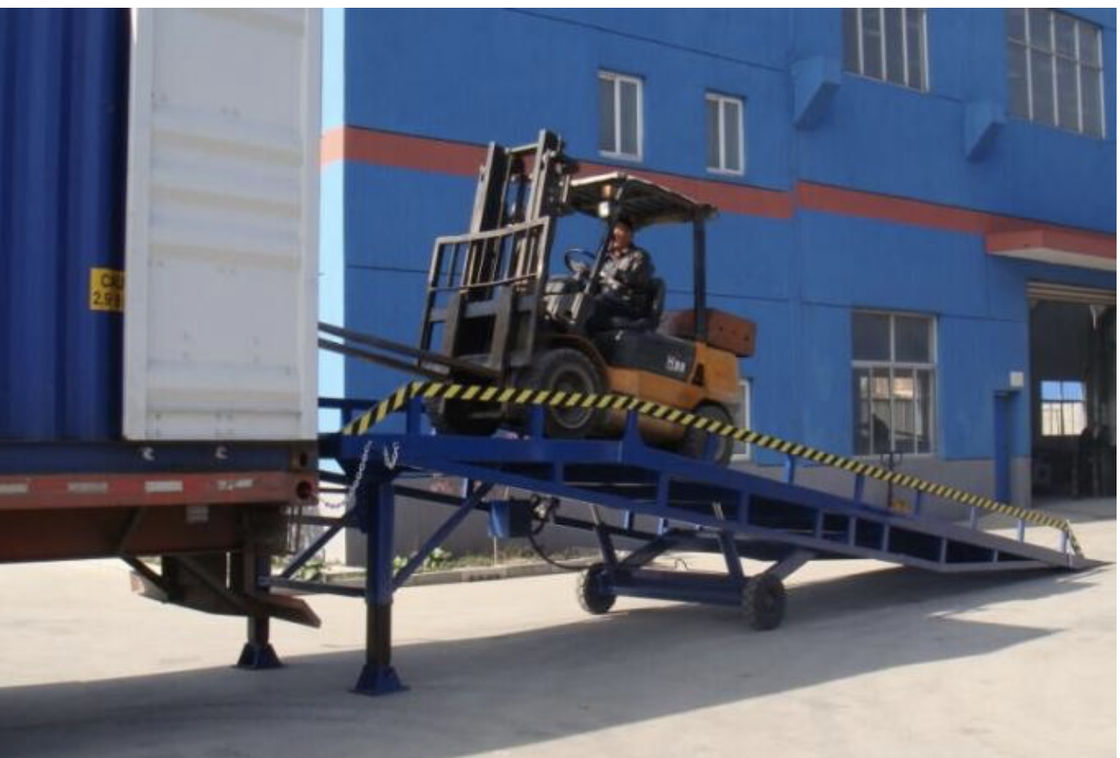

The Mobile Hydraulic Dock Ramp is a high-efficiency auxiliary device specially designed for gearless platforms and flow loading places. It needs to be used in conjunction with trucks. Its core function is to build a transition channel between the truck compartment and the ground/warehouse platform, allowing forklifts to drive directly into the interior of the truck compartment to realize rapid loading and unloading of mass goods.
Compared with traditional manual handling or simple ramps, this equipment can significantly shorten the loading and unloading process. It is especially suitable for scenarios requiring high-frequency cargo turnover such as logistics warehousing, factory freight, and supermarket distribution, and is a core auxiliary tool for improving loading and unloading efficiency.
3. Product Application
The Mobile Hydraulic Dock Ramp (also known as Mobile Hydraulic Dock Leveler) covers a wide range of loading and unloading needs, including:
Equipment and Cargo Loading & Unloading: It is compatible with auxiliary operations of various loading and unloading equipment (such as forklifts and pallet trucks) to complete the loading and unloading of boxed goods, palletized goods, and large components.
Liquid Cargo Loading & Unloading: It can be used with liquid cargo transport vehicles to assist in the safe loading and unloading of barreled and canned liquid materials.
Core Compatible Tool: As a dedicated auxiliary equipment for forklifts, it is widely used in warehouses, freight stations, docks, factory workshops and other scenarios without fixed dock ramps, solving the loading and unloading problems caused by the "height difference between trucks and the ground".
4. Product Advantage
Convenient and Efficient Operation: It can be operated by a single person (single operation) without external power supply (do not need power supply), enabling safe and rapid loading and unloading of goods. This avoids efficiency losses caused by equipment relying on electricity or multi-person collaboration.
Reduced Cost Input: It reduces manual handling intensity (reduce labor intensity) and lowers labor costs. At the same time, it improves overall work efficiency (improve working efficiency), accelerates material circulation speed (speed up material circulation), helps enterprises shorten the freight cycle, and obtain greater economic benefits.
Strong Scene Adaptability: No fixed installation is required. It can be flexibly moved to different operation locations according to loading and unloading needs, and is compatible with various vehicle models (such as truck compartments of different heights), meeting the diverse needs of mobile loading and unloading scenarios.
5. Product Features
Excellent Operation Experience: The platform work area is large, providing operators with a wide field of vision. The goods can be turned flexibly during loading and unloading (loading and unloading freight turn flexible), which reduces the risk of cargo collision.
Stable and Safe Operation: It has stable lifting performance (lift stable performance is good), which ensures no shaking of the platform during loading and unloading, and guarantees the operation safety of personnel, equipment and goods.
Strong Load-Bearing Capacity: The rated load of the full-series products ranges from 6,000 kg to 20,000 kg, which can meet the loading and unloading needs of goods of different weights, and enables convenient and efficient cargo handling (cargo handling is convenient).
No Power Dependence: No external power supply is needed, and the operation threshold is low. It is suitable for outdoor or temporary loading and unloading scenarios without power supply conditions.
Upgraded Safety Protection: It adopts a hand pump hydraulic system (hand pump hydraulic system), which produces no sparks (no sparks) during operation. It can work safely even in dangerous regions or flammable and explosive places.
Guaranteed Core Components: The seal parts are all products of the Japanese NOK brand, ensuring the sealing performance of the hydraulic system and avoiding oil leakage failures. The oil cylinder is manufactured using the cut iron rolling process, which has high strength and durability, extending the overall service life of the equipment.
6. Product Parameters Table
| Model |
Rated capacity(kg) |
A(m) |
B(m) |
C(m) |
D(m) |
E(m) |
F(m) |
G(m) |
H(m) |
I(m) |
J(m) |
| DCQY6-0.5 |
6000 |
7 |
2.2 |
1.0 |
0.3 |
10.5 |
2 |
2.08 |
1.2 |
0.5 |
1.7 |
| DCQY8-0.5 |
8000 |
7 |
2.2 |
1.0 |
0.3 |
10.5 |
2 |
2.1 |
1.2 |
0.5 |
1.7 |
| DCQ10-0.5 |
10000 |
7.5 |
2.4 |
1.0 |
0.3 |
11.2 |
2 |
2.1 |
1.2 |
0.5 |
1.7 |
| DCQY15-0.5 |
15000 |
8 |
4 |
1.0 |
0.3 |
13.3 |
2.3 |
2.46 |
1.2 |
0.5 |
1.7 |
| DCQY20-0.5 |
20000 |
8 |
4 |
1.0 |
0.3 |
13.3 |
2.3 |
2.5 |
1.2 |
0.5 |
1.7 |
7. Our Strength
High-Quality Supply Guarantee: All forklift-related products and spare parts are directly purchased from top-class manufacturers. They undergo strict in-house inspection (own inspection) before purchase to ensure product quality. At the same time, we have skilled technicians to provide technical support, ensuring the stable use of products.
Full-Cycle Technical Support: We provide 24/7 online technical query services to answer questions in real time regarding product use. We also offer comprehensive after-market solutions to quickly respond to equipment failure maintenance needs and reduce customer downtime losses.
One-Stop Service Capability: Relying on professional industry knowledge, high-quality service standards, and sufficient product availability, we have become a trusted "One-Stop-Shop" for customers. We can fully meet customers' integrated needs in logistics equipment procurement, use, and maintenance, simplifying the procurement process and reducing cooperation costs.
