EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger

EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger

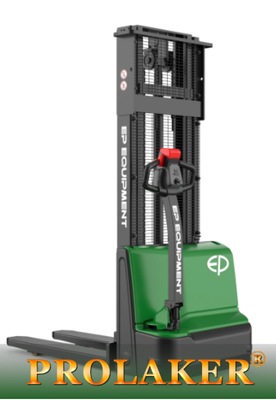

Gambar besar :  EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger

Detail produk:
Tempat asal: Cina
Nama merek: EP
Sertifikasi: ISO&ECE
Nomor model: DS3
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: Bisa dinegosiasikan
Harga: Dapat dinegosiasikan
Kemasan rincian: Palet kayu
Waktu pengiriman: <i>1-5 pieces 25-30 working days.</i> <b>1-5 buah 25-30 hari kerja.</b> <i>10 pieces bulk order 35-4
Syarat-syarat pembayaran: L/C,T/T,Western Union
Menyediakan kemampuan: 30 buah per bulan
Detil Deskripsi produk
Model: DS3 Menyetir: listrik
Tipe Operator: pejalan kaki Kapasitas Beban: 1500KG
Max. Maks. lift height tinggi angkat: 3018mm Diturunkan Tingginya: 90mm


Product Introduction
Most small & medium warehouses, e-commerce storage and factory workshops face 3 common troubles: narrow aisles inaccessible to large forklifts, mismatched stackers for multi-height racks, messy separate charging equipment occupying extra space.
EP DS3 walkie electric stacker is specially designed for light-duty vertical pallet handling. It supports 1500kg rated load capacity with a tiny turning radius of only 1455mm, matching narrow aisles over 2200mm. It fully covers pallet stacking, rack loading and finished goods transfer.

Why Choose Us
1. 6 Optional Mast Heights for All Rack Heights
2. Integrated Built-in Charger, Dual Battery Options
3. Auto Speed Reduction & Electromagnetic Brake for Safety
4. Compact Body Perfect for Narrow Aisles
5. Customizable Fork, Mast & Tiller Attachments

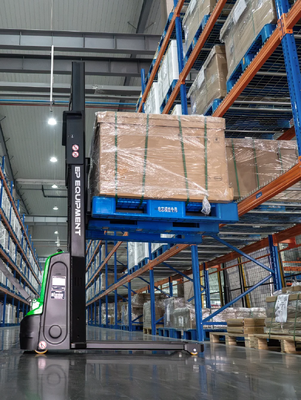

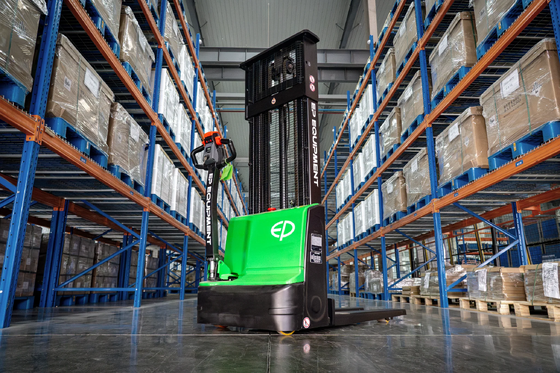

 EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger 0  EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger 1
Product Specification
Item Specification
Model DS3
Rated Load Capacity 1500kg
Service Weight 520kg
Wheelbase / Turning Radius 1210mm / 1455mm
Overall L×W×H (Mast Retracted) 1727×834×2067mm
Min. Fork Lowered Height 90mm


 EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger 2

Real Customer Application Cases


Configuration: DS3 standard 3018 mast, 80Ah AGM battery, 1150mm standard forks

Original Pain Points: Narrow warehouse aisles, low efficiency of manual stackers, separate external chargers

Actual Effect: Daily pallet handling capacity increased by 45%; built-in charger supports 24h shift work; annual maintenance cost reduced


FAQ
Q1: What is the maximum lifting height of DS3? Can customized higher mast be provided?
A: Standard max lift height 3018mm, optional max mast 3918mm with extended height 4432mm. Custom higher mast is unavailable currently.

Q2: Does the built-in charger need extra charging cabinet?
A: No external charging cabinet required, directly connect to 220V industrial or household mains power.

Q3: How to choose between lead-acid and lithium battery version?
A: Select lithium ion for multi-shift non-stop operation with lighter weight & longer endurance; choose standard AGM lead-acid for single-shift low-budget use.

Q4: Can we customize charger voltage for overseas markets?
A: Multi-country voltage chargers are available for Europe, Southeast Asia and other regions.

Q5: Can we replace forks separately if pallets have non-standard sizes?
A: 6 sizes of forks for optional separate replacement, no need to customize the whole stacker.
